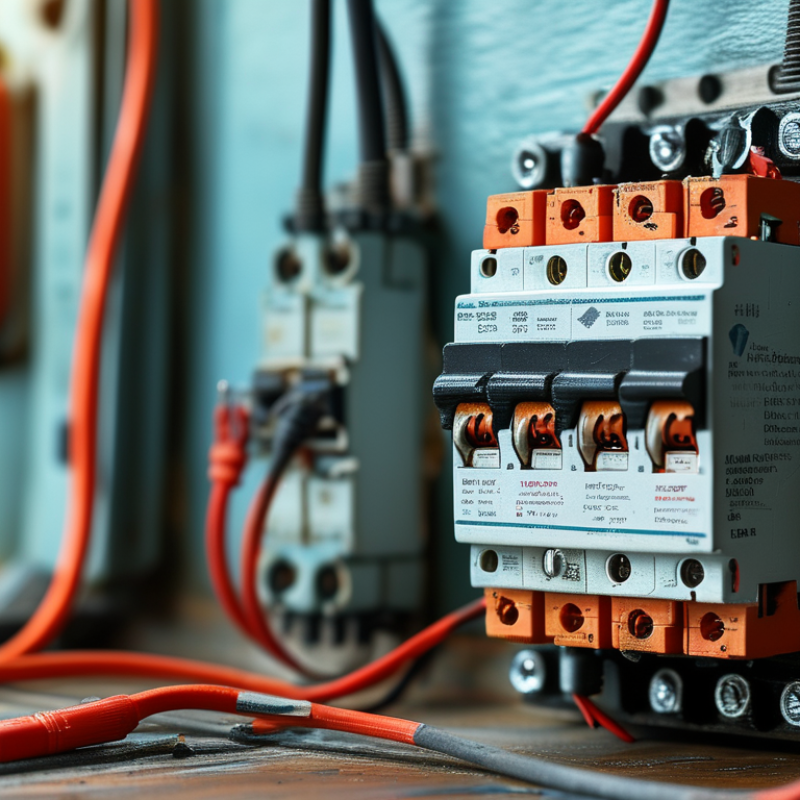

How to Choose the Right Mini Circuit Breaker for Your Needs?
In the dynamic world of electrical safety, choosing the right Mini Circuit Breaker (MCB) can be daunting. Renowned expert John Smith, a veteran in circuit protection technology, once said, “Selecting the correct MCB is crucial for both safety and efficiency in electrical systems.” This statement highlights the importance of understanding your specific needs when dealing with Mini Circuit Breakers.
When selecting an MCB, several factors come into play. These include the total load of your electrical systems, the type of appliances you use, and the installation environment. An MCB must effectively respond to electrical faults to protect both equipment and personnel. Additionally, improper selection can lead to frequent tripping or inadequate protection.
Research and seek guidance to make informed choices. Evaluate your electrical requirements and consider consulting a professional. A slight oversight in choosing the right Mini Circuit Breaker could result in significant repercussions. Ultimately, investing time in this selection process not only enhances safety but also improves the performance of your electrical system.
Understanding the Purpose of Mini Circuit Breakers in Electrical Systems
Mini circuit breakers (MCBs) play a crucial role in electrical systems. They protect circuits from overloads and short circuits. By automatically disconnecting the current, they safeguard appliances and prevent electrical fires. Understanding how MCBs work can help you choose the right one for your needs.
Selecting the correct MCB involves knowing its rating and the expected load. MCBs come in various ratings, and choosing one that matches your appliance’s requirements is vital. If the rating is too low, the MCB may trip frequently, causing inconvenience. Conversely, a rating that is too high may not offer sufficient protection. Many users overlook this detail, resulting in poor electrical safety.
Consider the installation location when choosing an MCB. Indoor and outdoor environments may require different types. Ratings for MCBs can vary based on where they will be used. Outdoor MCBs often need additional weatherproofing to ensure reliability. Ignoring this can lead to damage and unexpected failures.
Circuit configurations should also be considered, as they affect MCB choice. Three-phase circuits require different MCBs than single-phase ones. Assessing your setup accurately will guide your selection process. This step often requires expertise that many may not possess, leading to potential miscalculations. Always consult with a professional before making a decision, as proper installation is just as important as the right choice.
Key Factors to Consider When Selecting a Mini Circuit Breaker
When selecting a mini circuit breaker, several key factors come into play. You need to identify the purpose of the breaker. Knowing whether it is for residential use, commercial applications, or industrial settings is crucial. This will impact the specifications you need.
Next, consider the current rating for your application. This rating is essential for ensuring the breaker can handle the load. Underestimating this may lead to frequent tripping and potential safety hazards. Beyond current ratings, think about the voltage level. Mini circuit breakers come in different voltage ratings, and choosing the wrong one may cause operational issues.
Also, don’t overlook the response time of the circuit breaker. Some units react differently to short circuits and overloads. Faster response can prevent damage to connected devices. Lastly, evaluate the installation and reset features. An accessible design can save time and frustration when maintenance is needed. Reflecting on these details can lead to a better choice that aligns with your unique needs.
Evaluating the Current Rating and Trip Curve of Mini Circuit Breakers
Choosing the right mini circuit breaker (MCB) can seem daunting, but understanding two key factors can simplify the process: current rating and trip curve. The current rating is crucial as it determines the maximum current an MCB can handle without tripping. According to the International Electrotechnical Commission (IEC), MCBs are categorized into different ratings typically ranging from 1A to 125A. Selecting an MCB with inadequate current rating risks overheating and possible damage to your electrical system.
The trip curve is another important consideration. Mini circuit breakers come with different trip curves, denoted by letters B, C, and D. Each curve describes the response time of the breaker to overloads. For instance, type B breakers trip at 3 to 5 times their rated current. This characteristic is suitable for residential applications. Meanwhile, type C breakers are designed for commercial environments. They can manage short surges in current without unnecessary trips. A report by the Institute of Electrical and Electronics Engineers (IEEE) notes that choosing the right trip curve can enhance system reliability and safety, avoiding nuisance tripping.
Understanding these specifications facilitates informed decision-making, but it’s essential to evaluate your electrical requirements meticulously. An MCB that is too sensitive or not sensitive enough could lead to frequent interruptions or equipment failure. Being thoughtful about your selection ensures optimal performance and minimizes potential hazards in your electrical system.
How to Choose the Right Mini Circuit Breaker for Your Needs?
| Breaker Type |
Current Rating (A) |
Trip Curve |
Application |
| Type B |
6 A |
B Curve |
Residential Lighting |
| Type C |
10 A |
C Curve |
General Appliances |
| Type C |
16 A |
C Curve |
Power Tools |
| Type D |
25 A |
D Curve |
Inductive Loads |
| Type C |
32 A |
C Curve |
Heating Equipment |
Types of Mini Circuit Breakers: Which One Suits Your Requirements?
When selecting a mini circuit breaker, understanding the different types is crucial. Each type is designed for specific applications, and choosing the right one can make a significant difference. There are mainly two types: single-pole and double-pole breakers. A single-pole breaker is suitable for circuits that require 120 volts, commonly found in residential wiring. It protects individual circuits, ensuring safety in everyday usage.
On the other hand, double-pole breakers handle 240-volt circuits. They are essential for larger appliances, such as dryers and water heaters. If you’re adding new equipment or renovating, this type may be necessary. Additionally, consider the tripping characteristics—B, C, or D curves—each designed for different loads. A B curve is ideal for general applications, while a C curve is better for inductive loads like motors, which could pose a challenge.
It’s often underestimated how critical it is to inspect the ratings and specifications. Each mini circuit breaker has a specific current rating and voltage limit. Selecting one without careful consideration may lead to malfunction or fire hazards. Always ensure that the breaker matches the electrical load. Not everyone chooses wisely, and mistakes can happen. Always consult an expert if uncertain. This can save you time and potentially dangerous situations.
Importance of Installation and Maintenance in Circuit Breaker Performance
Choosing the right mini circuit breaker is essential, but it's equally important to focus on installation and maintenance. A report from the International Electrotechnical Commission (IEC) indicates that improper installation can lead to over 30% of electrical failures. Circuit breakers need to be installed at the correct height, ensuring accessibility for maintenance and operation. Every component must be securely connected to prevent arcing or overheating.
Regular maintenance of circuit breakers significantly enhances their performance and lifespan. Research shows that around 40% of circuit failures are preventable through routine inspections. Check for signs of wear, corrosion, and any unusual noises. Keeping breaker panels clean can help identify potential issues early.
Maintenance does not have to be complex. Create a schedule to inspect your circuit breakers twice a year. This should include testing the trip function and ensuring connections are tight. Even minor adjustments can prevent major failures. Neglecting these simple tasks may result in costly repairs or dangerous conditions.
